How To Set Up Alesis Io2 Express

User manual for Alesis iO2 Limited USB Audio Interface IO2 EXPRESS

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

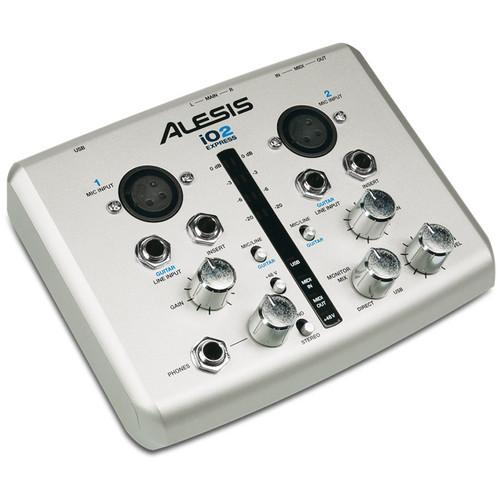

Alesis iO2 Express USB Audio Interface IO2 EXPRESS

  • Manufacturer: Alesis
  • Basic description and contents of package
  • Product nomenclature: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and functioning of the audio interfaces & systems
  • Tips for setting up your Alesis
  • Settings and expert aid
  • Contact Alesis service
  • Troubleshooting
  • Warranty data
  • Price: 75 USD
Nosotros recommend checking out our discussion threads on the Alesis iO2 Limited USB Audio Interface IO2 Limited, which address like problems with connecting and setting upwardly Sound Interfaces & Systems Alesis.

User transmission for the Alesis iO2 Limited USB Audio Interface IO2 Express

The user manual for the Alesis iO2 Limited USB Audio Interface IO2 EXPRESS provides necessary instructions for the proper use of the product Pro Audio - Estimator Audio - Audio Interfaces & Systems.

The Alesis iO2 Limited USB Audio Interface is an affordable yet efficient way to improve your computer's sound quality in home and project recording applications. The iO2 is a USB powered audio interface with 2 line/guitar switchable inputs, ii balanced XLR microphone inputs with 48V phantom power, i/4" phone TRS inserts for connecting external processors, stereo and headphone outputs for monitoring.

If you own a Alesis audio interfaces & systems and have a user manual in electronic form, you can upload information technology to this website using the link on the right side of the screen.

You lot tin can upload and download the manual for the Alesis iO2 Express USB Audio Interface IO2 Express in the post-obit formats:

  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately non supported.
User manual for Alesis iO2 Express USB Audio Interface IO2 EXPRESS Download user manual for Alesis iO2 Limited USB Audio Interface IO2 Express
(PDF file, 0.5 MB)
Boosted parameters of the Alesis iO2 Limited USB Audio Interface IO2 Express:
    System Requirements Mac: Bone X 10.2+
    Windows: XP, Vista, or seven
    USB port
    Frequency Response MIC/LINE IN to USB OUT: ±0.1dB
    MIC/LINE IN to MAIN OUT (through ADC/DAC) ±0.35dB
    Signal-to-Racket Ratio MIC/LINE IN (balanced) to INSERT OUT: 110dB A-weighted, input impedance at XLR or 1/iv" jack = 600 Ohms
    GUITAR IN (unbalanced) to INSERT OUT: 99dB A-weighted, input impedance at 1/4" jack = 600 Ohms
    MIC/LINE IN (balanced) to USB OUT: 99dB A-weighted, input impedance at MIC or LINE jack = 600 Ohms
    GUITAR IN (unbalanced) to USB OUT: 94dB A-weighted, input impedance at 1/4" jack = 600 Ohms
    MIC/LINE IN (balanced) to MAIN OUT (through ADC/DAC): 97dB A-weighted, input impedance at MIC or LINE jack = 600 Ohms
    MIC/LINE IN (balanced) to MAIN OUT (through direct monitor): 95dB A-weighted, input impedance at MIC or LINE jack = 600 Ohms
    THD & Noise MIC/LINE IN (balanced) to INSERT OUT: <0.001% Input Gain = minimum, 1KHz input bespeak, INSERT OUT = five.7dBV
    GUITAR IN (unbalanced) to INSERT OUT: 0.034% Input Gain = minimum, 1KHz input signal, INSERT OUT = 5.3dBV
    MIC/LINE IN (counterbalanced) to USB OUT: 0.003% Input Gain = minimum, 1KHz input betoken, USB OUT = -0.3dBFS
    GUITAR IN (unbalanced) to USB OUT: 0.034% Input Gain = minimum, 1KHz input signal, USB OUT = -0.7dBFS
    MIC/LINE IN (balanced) to Primary OUT (through ADC/DAC): 0.005% Input Proceeds = minimum, 1KHz input point, Chief OUT = 5.6dBV
    MIC/LINE IN (balanced) to MAIN OUT (through direct monitor): 0.006% Input Proceeds = minimum, 1KHz input signal, MAIN OUT = five.6dBV
    Packaging Info
    Package Weight 1.6 lb
    Box Dimensions (LxWxH) 11.1 x 7.nine x iii.i"
    The user manual for the Alesis iO2 Express USB Audio Interface IO2 EXPRESS can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is too quite common that customers throw out the user transmission with the box, or put the CD away somewhere and then can't detect it. That's why we and other Alesis users keep a unique electronic library for Alesis audio interfaces & systemss, where you tin use our link to download the user manual for the Alesis iO2 Express USB Audio Interface IO2 EXPRESS.

    The user transmission lists all of the functions of the Alesis iO2 Express USB Sound Interface IO2 Express, all the basic and avant-garde features and tells you lot how to use the sound interfaces & systems. The transmission also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, simply which can often be downloaded from Alesis service.

    If yous desire to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by yous – users of the Alesis iO2 Limited USB Sound Interface IO2 Limited. User manuals are also available on the Alesis website under Pro Sound - Reckoner Audio - Sound Interfaces & Systems.
